Equipment Feature：

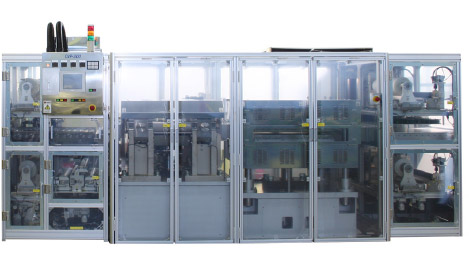

CVP-300 is automated laminator system which consists of diaphragm laminator(for 1st stage) and flattening press(for 2nd stage) With its high flattening capability, it is suitable for build-up and solder resist lamination process.

Equipment Structure：
-Carrier Film Conveyance System(Film Forwarder/ Film Rewinder)
-Diaphragm Lamination Chamber(1st) + Hydraulic Press Unit(2nd)

Lamination Method: Diaphragm

Footprint： (L) 4135mm x (w)3180mm x (h)1935mm

Acceptable Worksize： MAX510 x 610(mm)

Utilities：
Compressed air（0.5～0.6MPa）
Forced Exhaust
3-Phase AC 220V
Cooling Water for Vacuum Pump： 2~3L/Min
